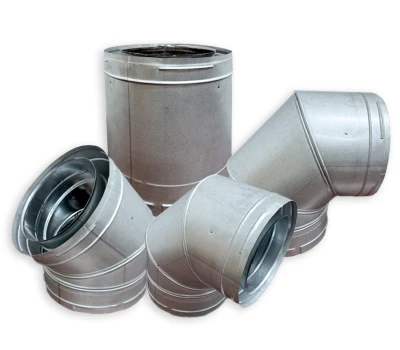

DirectVent® Pro 8x11

The Duravent Group is proud to expand their direct vent product lines with the DirectVent^® Pro 8x11. Specifically engineered for gas-fired direct vent fireplaces in today's luxury custom homes and commercial applications, this innovation combines clean design, superior performance, and effortless installation.

Designed with premium features such as laser-welded seams, a hem-free design, and twist-lock connections, the DirectVent Pro 8x11 is ideal for high-end residential builds, as well as upscale lobbies and lounges in hotels, restaurants, casinos, and more.

Applications:

DirectVent Pro 8x11 is a coaxial venting system designed for use with direct vent gas appliances.

Materials and Construction

Vertical and horizontal terminations are constructed of stainless steel. Outer pipe brings combustion air to the appliance and the inner pipe exhausts flue gases to the outside. Gaskets or sealants are not required (unless specified by the appliance manufacturer).

Key Features:

Twist-Lock Connections for Easy Installation
Laser-Welded Seams
Durable 0.016” 430 Stainless Steel Inner Pipe
Strong 0.018” Galvalume Outer Wall
Swivel Collar Elbows for Flexible Configuration

Listings:

DirectVent Pro 8x11 has been UL tested and listed to UL 2112 for use with ANSI Z21/CSA direct vent gas appliances certified by a major testing agency, such as UL, CSA, OMNI, Warnock Hersey (Intertek). Check with the appliance manufacturer for approval.

Vertical Termination Cap

Provides improved performance in high wind conditions. For vertical terminations only. Stainless steel construction.

Horizontal Termination Cap

Use for standard and high-wind through-the-wall applications. Check the appliance manufacturer’s installation instructions for minimum distance from windows and doors, and any other restrictions. Stainless Steel exterior construction. 2-piece adjustable design allows for up to 5-1/2” of adjustment.

Adjustable Pipe

Use when an exact length must be met between elbow offset or elsewhere. The Adjustable Length is a 2 piece design with an adjustability of 7” (15” to 22”).

45° Elbow

Use to offset around obstructions as needed. Fully unitized, twist-lock construction. Elbow has a swivel base, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°.

90° Elbow

Use to offset around obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°.

Pipe Length

Available in 12", 18", 24", 36", and 48" lengths. Designed for appliances tested and approved for DirectVent Pro 8x11. The 8x11 features a fully unitized twist-lock construction. Use of sealant is optional, unless specified by the appliance manufacturer. To calculate installed length, subtract 1 5⁄8” for each joint.

Adjustable Attic Insulation Shield

Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Includes base with overlapping shields and collar.

Wall Thimble

Provides a complete wall-pass through and firestop when used with the Horizontal Cap. Accommodates a wall thickness of 5-1/2” to 10-1/2”. Provides a 3” clearance at the top and 2” clearance at the bottom and sides. Check with the appliance manufacturer’s installation instructions and local codes for requirements. 811DVP-WT
